| EKI-5626CI-EI-AE | ||
| Attestation | CEM | EN 61000-4-2 (niveau 3), EN 61000-4-3 (niveau 3), EN 61000-4-4 (niveau 3), EN 61000-4-5 (niveau 3), EN 61000-4-6 (Niveau 3), EN 61000-4-8 (Niveau 3) |
| Attestation | EMI | CE, FCC Classe A |
| Certification | SME | - |
| Attestation | Norme Ethernet | IEEE 802.3, 802.3u, 802.3x, 802.1D, 802.1w, 802.1p, 802.1Q, 802.1x, 802.3ad, 802.3az |
| Attestation | Chute libre | CEI 60068-2-32 |
| Attestation | Sécurité | UL508 |
| Attestation | Choc | CEI 60068-2-27 |
| Attestation | Vibration | CEI 60068-2-6 |
| Environnement | Humidité relative | 10~95% |
| Environnement | Température (fonctionnement maximum) | 75°C (167°F) |
| Environnement | Température (min. de fonctionnement) | -40°C (-40°F) |
| Environnement | Operating Temperature | -40 ~ 75°C (-40 ~ 167°F) |
| Environment | Storage Temperature | -40 ~ 85°C (-40 ~ 185°F) |
| Ethernet Communication | Fiber Port Connector Type | SFP cage |
| Ethernet Communication | Fiber Port Interface | SFP |
| Ethernet Communication | Fiber Port Number | 2 |
| Ethernet Communication | Fiber Transmission Speed | 10/100/1000 Mbps |
| Ethernet Communication | Fiber Transmission Distance | Up to 110 km |
| Ethernet Communication | RJ-45 Port Connector Type | RJ-45 |
| Ethernet Communication | RJ-45 Port Number | 16 |
| Ethernet Communication | RJ-45 Transmission Distance | 100 m |
| Ethernet Communication | RJ-45 Transmission Speed | 10/100 Mbps |
| Ethernet Communication | RJ-45/SFP Combo Port Number | 2 |
| Ethernet Communication | RJ-45/SFP Combo Port Speed | 10/100/1000 Mbps |
| Protocol Support | Modbus TCP | - |
| Protocol Support | Modbus RTU | - |
| Protocol Support | PROFINET | - |
| Protocol Support | EtherNet/IP | Yes |
| Protocol Support | EtherCAT | - |
| Protocol Support | OPC UA | - |
| Protocol Support | BACnet | - |
| Protocol Support | Ethernet | Yes |
| Mechanism | Dimensions (W x H x D) | 74 x 120 x 84 mm |
| Mechanism | Enclosure (Plastic) | - |
| Mechanism | IP Rating | IP30 |
| Mechanism | Mounting (DIN-rail) | Yes |
| Mechanism | Mounting (Panel) | - |
| Mechanism | Mounting (Pole Mount) | - |
| Mechanism | Mounting (Rack Mount) | - |
| Mechanism | Mounting (Stack) | - |
| Mechanism | Mounting (Wall) | Yes |
| Mechanism | Weight | 0.7 kg |
| MTBF | Method | Telcordia(Relax), GB |
| MTBF | Time | 2,825,281 hours |
| PoE Information | PoE Port Number | - |
| PoE Information | PoE Budget | - |
| PoE Information | PoE Output | - |
| PoE Information | Support PoE | No |
| Power | Power Connector Type | 6-pin removable screw terminal (power & relay) |
| Power | Power Consumption | 8.2W (system) |
| Power | Power Input (AC) | - |
| Power | Power Input (Battery) | - |
| Power | Power Input (DC) | 12 ~ 48 VDC |
| Power | Power Input (PoE) | - |
| Power | Power Operating Current | 0,12 A à 48 V CC (système) |
| Pouvoir | Entrées doubles redondantes | - |
| Protection | Polarité inversée | Présent |
| Protection | Courant de surcharge | - |
| Propriétés du commutateur | Cadre géant | 9 216 octets |
| Switch Properties | Taille du tableau MAC | 8K |
| Propriétés du commutateur | Taille du tampon de paquets | 4,1 Mbits |
| Propriétés du commutateur | Vitesse de la structure de commutation | 7,2 Gbit/s |
| Garantie | Période de garantie | 5 ans |

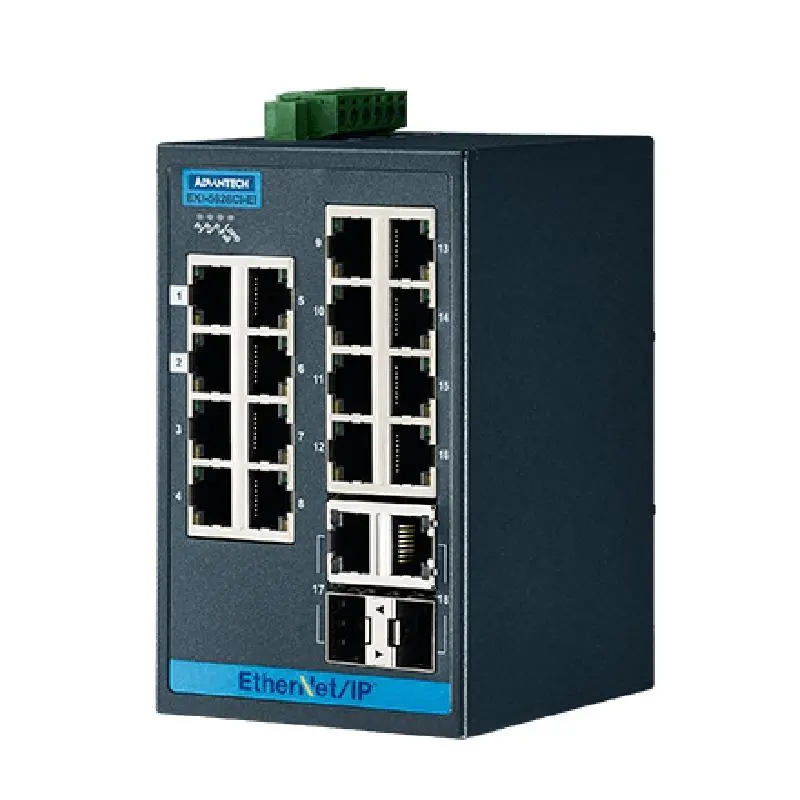

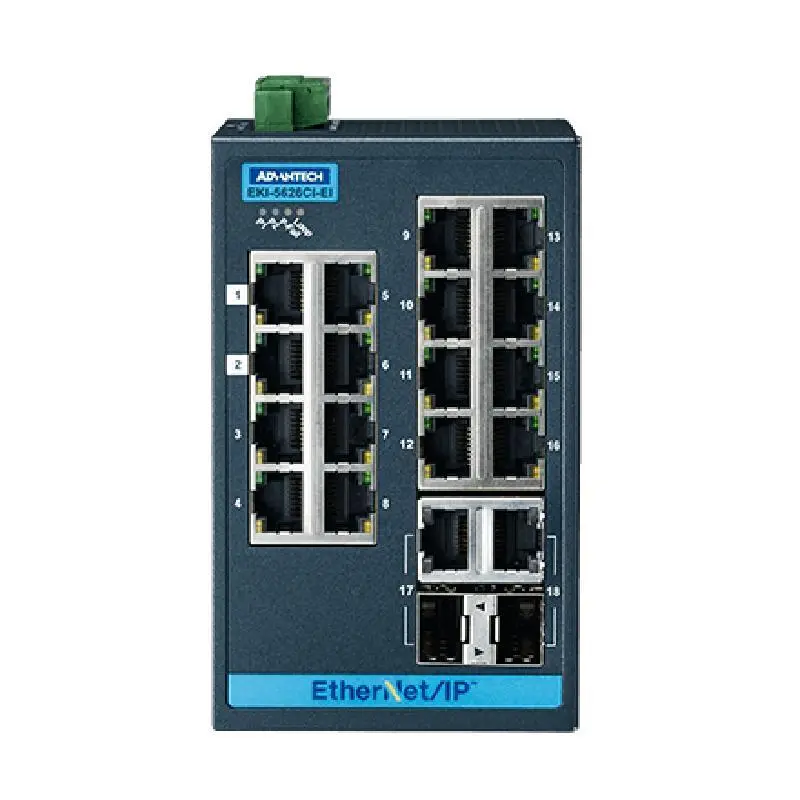

Advantech EKI-5626CI-EI 16FE + 2G Combo commutateur Ethernet géré, prise en charge EtherNet/IP, -40 ~ 75 ℃
